EssentialPower
EssentialPowerTM, The Single Phase
EssentialPower is the online, true double-conversion, single phase Uninterruptible Power Supply.From 1 to 20 kVA, EssentialPower provides the most flexible and reliable solution ideal for small network devices, servers, point-of-sale, work station clusters and light-industrial installations. EssentialPower satisfies any entry-level mission critical application demanding high availability and flexibility.
Flexibility for Any Application
From 2U to 5U, mono-mono or Tri-mono, EssentialPowerTM can be used as standalone Tower or Rack-mounted UPS on any mission critical application. EssentialPowerTM offers built-in internal batteries from 1 to 6kVA, and the possibility to connect up-to 4 matching battery cabinets for autonomies of up to 4 hours.
Benefits
-
Standalone Tower or 19” Rack-mount configurations
-
Connectivity: USB, RS-232, potential-free contacts
-
EPO contact inputs for remote shutdown
-
Cold start
-
Parallel operation from 6 kVA to 20 kVA
-
Frequency converter operation (50 Hz or 60 Hz)
-
Connect up-to 4 battery modules to achieve hours of autonomy times
-
Rotatable display
Connectivity
With a variety of options, like, communication cards, Expansion relays, SNMP and ambient monitoring applications, Essential PowerTM can be easily integrated into any environment and building management system.
Reliability
True-Online double conversion, pure sinewave output
Reliable digital power conversion architecture
Wide Range Input Window from 110 - 300Vac
Extended battery life I – U (DIN 41773)
Patented Backup Runtime Estimation on LCD
Ease of Service
Frontal access battery replacement
Clean and clear user-friendly display
Records event log and alarms up to 500
Personalization & Intelligent Self-diagnostic
Easy Firmware Flash Upgrade
Manual maintenance bypass switch (optional)
Standalone or Rack-mount Configurations

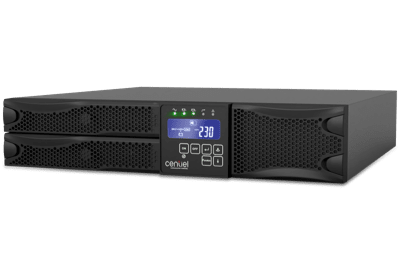

1-6 kVA
2U

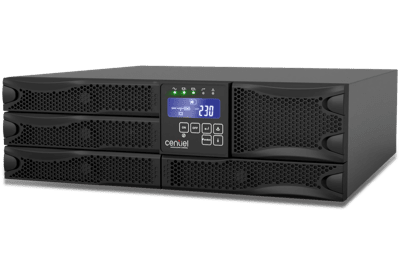

10 kVA
3U

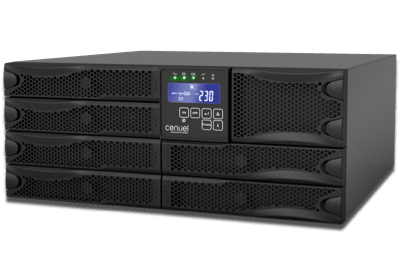

6 kVA with Batteries
4U

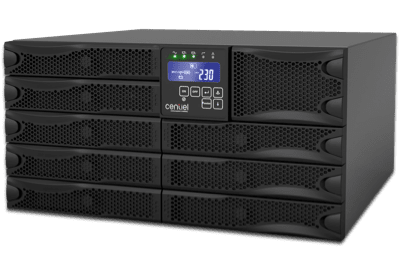

15-20 kVA
5U
Battery Autonomy
2UEPBAT12 | EPBAT06
| EssentialPowerTM 11RT UPS TYPE |
1kVA UPS-EP001-11-I03-2U UPS-EP001-11-I03-2US |
2kVA UPS-EP002-11-I06-2U UPS-EP002-11-I06-3US |
3kVA UPS-EP003-11-I06-2U UPS-EP003-11-I06-4US |
6kVA UPS-EP006-11-E-2U UPS-EP006-11-I20-4U |
10kVA UPS-EP010-11-E-3U |
|---|---|---|---|---|---|
| Battery Cabinet | CAB-EPBAT06-I00-2U | CAB-EPBAT12-I00-2U | CAB-EPBAT12-I00-2U | CAB-EPBAT20-I00-3U | CAB-EPBAT20-I00-3U |
| Battery Type | 7Ah / 9Ah | 7Ah / 9Ah | 7Ah / 9Ah | 7Ah / 9Ah | 7Ah / 9Ah |
| UPS | 5 / 7 | 5 / 7 | <3 / 4 | N.A. | N.A. |
| UPS + 1 EPBATxx | 27 / 35 | 25 / 32 | 15 / 20 | 6 / 8 | 3 / 4 |
| UPS + 2 EPBATxx | 54 / 69 | 50 / 64 | 31 / 40 | 17 / 22 | 8 / 11 |
| UPS + 3 EPBATxx | 83 / 106 | 77 / 98 | 49 / 63 | 30 / 39 | 15 / 19 |
| UPS + 4 EPBATxx | 114 / 146 | 96 / 135 | 68 / 87 | 44 / 57 | 23 / 29 |
EPBAT20
| EssentialPowerTM 31RT UPS TYPE |
10kVA UPS-EP010-31-E-3U |
15kVA UPS-EP015-31-E-5U |
20kVA UPS-EP020-31-E-5U |
|---|---|---|---|
| Battery Cabinet | CAB-EPBAT20-I00-3U | CAB-EPBAT20-I00-3U | CAB-EPBAT20-I00-3U |
| Battery Type | 7Ah / 9Ah | 7Ah / 9Ah | 7Ah / 9Ah |
| UPS | N.A. | N.A. | N.A. |
| UPS + 1 EPBATxx | 3 / 4 | <2 / 2 | <1 / 1 |
| UPS + 2 EPBATxx | 9 / 12 | 5 / 7 | 3 / 4 |
| UPS + 3 EPBATxx | 17 / 22 | 9 / 12 | 6 / 8 |
| UPS + 4 EPBATxx | 25 / 32 | 14 / 18 | 9 / 12 |
